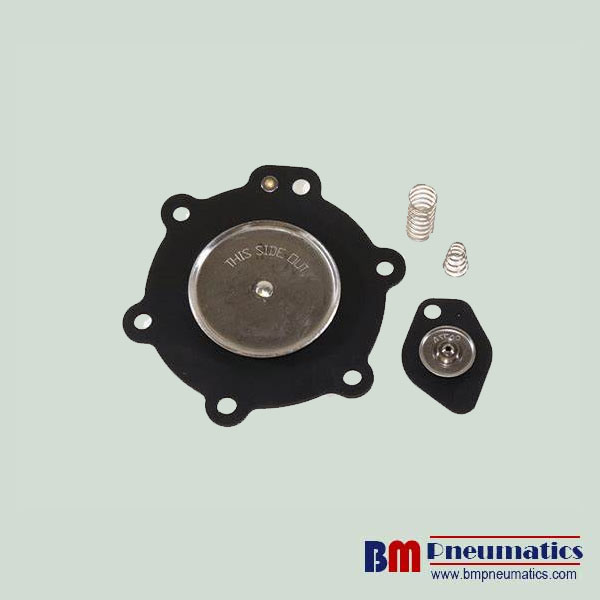

276886 Diaphragm For ASCO Pulse Jet Valve 8353H038
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Order Code of Diaphragm:
Integral Pilot Pulse Valve Model No | Remote Pilot Pulse Valve Model No | Pulse Valve Port Size | Diaphragm Model | Diaphragm Model (10 pack) | Diaphragm Material |
– | 8353C033 | 3/4” | 96875 | 238864 | NBR diaphragm |
– | 8353C030 | 3/4” | 96875 | 238864 | NBR diaphragm |
– | 8353C004 | 3/4” | 96875 | 238864 | NBR diaphragm |
– | 8353C035 | 1” | 200262 | 238866 | HYTREL diaphragm |
8353G041 | – | 1” | 316563 | 238866 | HYTREL diaphragm |
8353G006 | – | 1” | 300144 | – | CR diaphragm, PA disc |
8353G005 | – | 1 1/4” | 300144 | – | CR diaphragm, PA disc |
8353G001 | – | 1 1/2” | 300144 | – | CR diaphragm, PA disc |
– | 8353H038 | 1 1/2” | 276886 | 238870 | HYTREL diaphragm |
8353J039 | – | 1 1/2” | 322108 | 238870 | HYTREL diaphragm |
8353G061 | – | 1 1/2” | 316297 | – | NBR diaphragm, PA disc |
– | 8353A062 | 1 1/2” | 276884 | – | NBR diaphragm, PA disc |
8353G002 | – | 2” | 300145 | – | CR diaphragm, PA disc |
– | 8353 048 | 2” | 256802 | 256797 | CR diaphragm |
8353G050 | – | 2” | 316029 | 256797 | CR diaphragm |
8353G007 | – | 2 1/2” | 176878 | – | CR diaphragm, PA disc |
8353G008 | – | 3” | 176878 | – | CR diaphragm, PA disc |

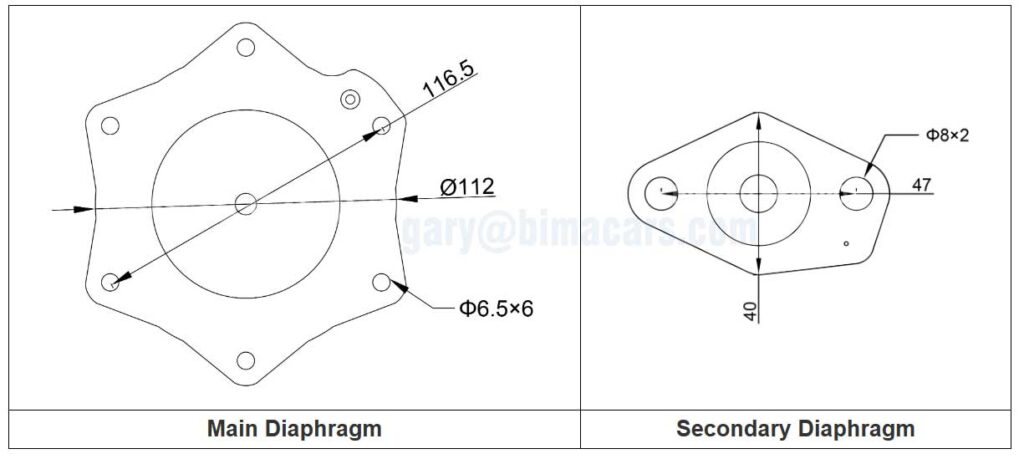

Main Dimension of 276886 Diaphragm:
