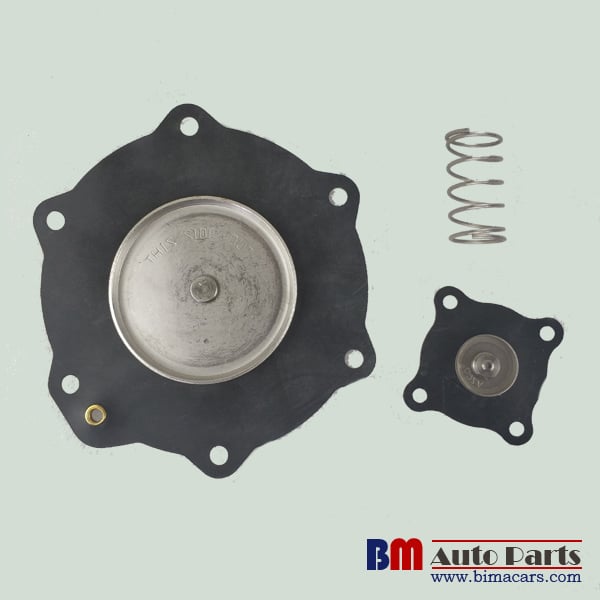

ASCO Diaphragm Repair Kits C113685,C113686 for SCG353A050/SCG353A051 Pulse valve
Ordering Code: C113685,C113686
The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Diaphragm kits for: ASCO Dual stage pulse valves: SCG353A050/SCG353A051 G353A061
Material: Buna(NBR),Viton
Spring: SS304
Cover: SS304
Pressure range: 0.05-1.0 Mpa
Working Temperature: NBR -20ºC- +82ºC CViton:-20ºC- +232ºC
Lifespan: 1 million cycles
The repair kits all parts we all can supply,
If you need more parts,Please choose the number from the pictures.
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G35A041, G353042 SCG353A043, SCG353A044 | 3/4” , 1” | TPE / NBR |
| C113444 | |||
| C113825 | G353A045 | 1 1/2” | NBR / BUNA |
| C113826 | G353A046 | 1 1/2” | NBR / BUNA |
| C113827 | SCG353A047 | 1 1/2” | NBR / BUNA |
| C113685 | SCG353A050, SCG353A051, G353A048, G353A049 | 2” , 2 1/2” | NBR / BUNA |
| C113686 | NBR / BUNA | ||
| C113928 | SCEX353.060 | 3” | NBR / BUNA |
