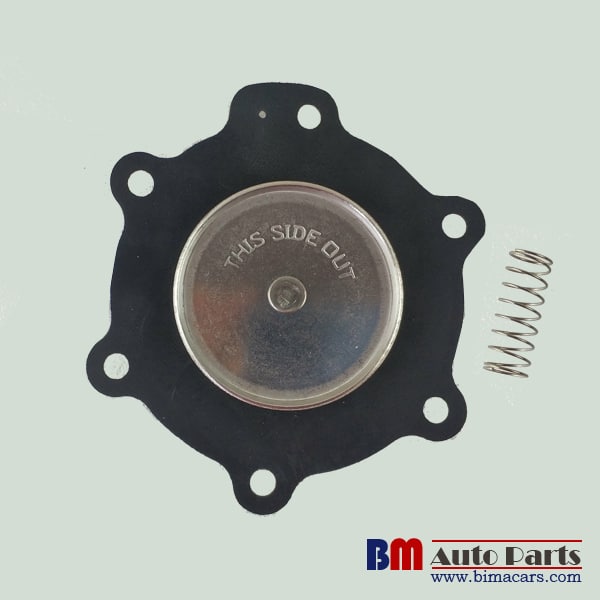

ASCO C113825 For G353A045 Pulse Dust Collector


NBR/FKM ASCO membrane C113825 for G353A045 pulse dust collector

Detailed Product Description
Valve Port Size:1 1/2″Material:NBR/FKM
Model:C113825Lifespan:1 Million Cycles
Fitted Valve Code:G353A045
High Light:FKM ASCO Membrane, NBR ASCO Membrane, C113825 ASCO Membrane

Ordering Code: C113825,
Repair kits for ASCO G353A045
The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Diaphragm Material: Buna(NBR)
Cover: SS304
Diaphragm kits for: ASCO pulse valves: SCG353A047,G353A065,G353A046,G353A045
Working pressure: 0.05-1.0 Mpa
Working Temperature: -20ºC- +82 ºC
Lifespan:1 million cycles

FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve
• The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explo- sive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52)
• ASCO/JOUCOMATIC components satisfy all relevant EC directives

Ordering CodeFitted Valve CodeValve port sizeMaterial
C113443G35A041, G353042

SCG353A043, SCG353A044

3/4” , 1”TPE / NBR
C113444
C113825G353A0451 1/2”NBR / BUNA
C113826G353A0461 1/2”NBR / BUNA
C113827SCG353A0471 1/2”NBR / BUNA
C113685
SCG353A050, SCG353A051,
G353A048, G353A049
2” , 2 1/2”NBR / BUNA
C113686NBR / BUNA
C113928SCEX353.0603”NBR / BUNA
