| Size: | 1 1/2Inch | Model: | G353A045 |
|---|---|---|---|
| Body: | Aluminium | Spring: | Stainless Steel |
| Diaphragm: | TPE (thermoplastic Polyester Elastomer) Or CR (chloroprene) | ||
| High Light: | Remote pilot solenoid valve, G1 1/2″ Pilot Solenoid Valve, ASCO G353A045 Pilot Solenoid Valve | ||

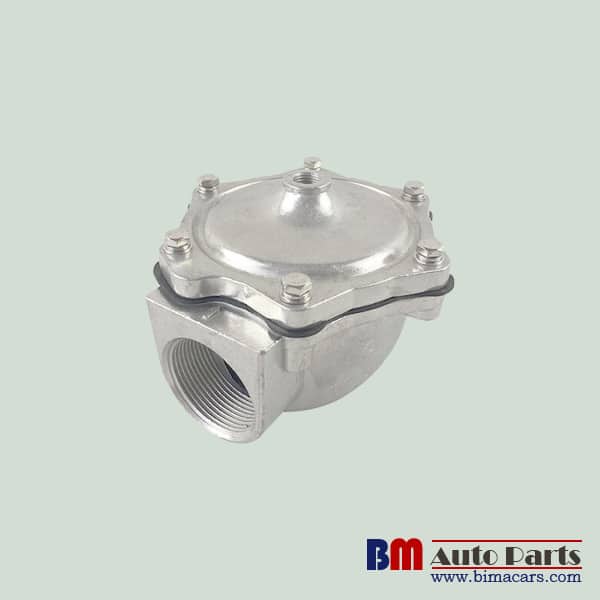

ASCO G353A045 G1 1/2″ Remote pilot threaded body Pulse valve
FEATURES
•The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow,long life and extremely fast opening and closing to provide reliable and economical operation
•The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
•Integral compression fittings for fast, easy, secure installation
•Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
• The components satisfy all relevant EC directives
GENERAl
Differential pressure (PS) 0,35 – 8,5 bar [1 bar = 100kPa]
Ambient temperature range -40/-20 to +85°C (TPE/CR)
Specifications
| pipe size | remote pilot connection | orifice size | flow coefficient Kv | operating pressure differential (bar) | catalogue number | option FPM | |||
| min. | max. (PS) | ||||||||
| air | |||||||||
| G | 0B | (mm) | = | standard | ATEX II2G/D | ||||
| G – Threaded pipe connection | |||||||||
| 3/4 | 1/8 | 24 | 14 | 233 | 0,35 | 8,5 | G353A041 | G353A041 GD | V |
| 1 | 1/8 | 27 | 17 | 283 | 0,35 | 8,5 | G353A042 | G353A042 GD | V |
| 1 1/2 | 1/4 | 52 | 46 | 768 | 0,35 | 8,5 | G353A045 | G353A045 GD | V |
| 0 – Compression fitting pipe connection | |||||||||
| 3/4 | 1/8 | 24 | 14 | 233 | 0,35 | 8,5 | G353-055 | G353-055 GD | V |
| 1 | 1/8 | 27 | 17 | 283 | 0,35 | 8,5 | G353-056 | G353-056 GD | V |
| 1 1/2 | 1/4 | 52 | 43 | 717 | 0,35 | 8,5 | G353-066 | G353-066 GD | V |
CONSTRUCTION
Body Aluminum
Spring Stainless Steel
Diaphragm TPE(thermoplastic polyester elastomer) or CR(chloroprene)
| catalogue number | A | B | C | D | E | F | G | weight |
| G353A041 (GD) | – | G 1/8″ | 51 | 89 | 75 | 41 | 64 | 0,45 |
| G353A042 (GD) | – | G 1/8″ | 51 | 89 | 75 | 41 | 64 | 0,40 |
| G353A045 (GD) | 30 | G 1/4″ | 71 | 130 | 136 | 71 | 98 | 1,00 |
| G353-055 (GD) | – | G 1/8″ | 88 | 125 | 75 | 47 | 109 | 0,58 |
| G353-056 (GD) | – | G 1/8″ | 88 | 125 | 75 | 47 | 129 | 0,61 |
| G353-066 (GD) | 30 | G 1/4″ | 117 | 177 | 136 | 73 | 161 | 1,33 |
