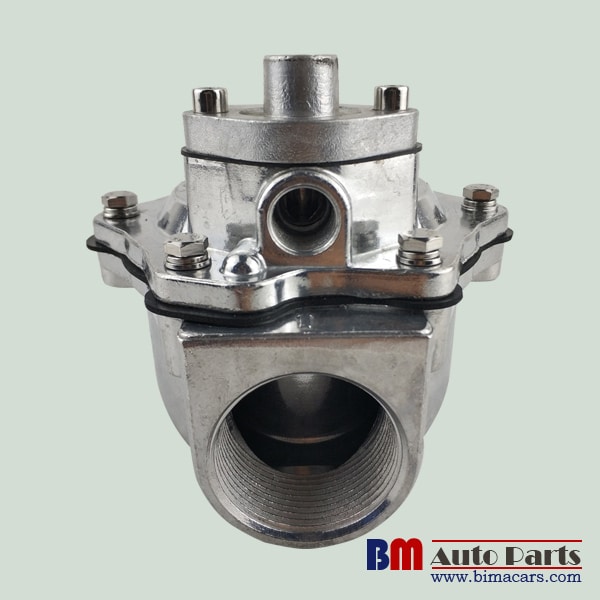

1/2″ G353A046 ASCO dual stage Remote Control Pulse Jet Valve Right angle pulse valve
FEATURES
• The pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and
closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust
collector service applications
• Integral compression fittings for fast, easy, secure installation
• Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
• The components satisfy all relevant EC directives
Body Aluminum
Spring Stainless Steel
Diaphragm TPE(thermoplastic polyester elastomer) or CR(chloroprene)
GENERAl
Differential pressure (PS) 0,35 – 8,5 bar [1 bar = 100kPa]
Ambient temperature range -20 to +85°C
Specifications:
| pipe size | orifice size | flow coefficient Kv | operating pressure differential (bar) | catalogue number | OPTION FPM | |||
| mln. | max. (PS) | |||||||
| air | ||||||||
| (mm) | (m3/h) | (l/min) | -/= | standard | ATEX II2G/D | |||
| G – Threaded pipe connection | ||||||||
| 1 1/2 | 52 | 46 | 768 | 0,35 | 8,5 | G353A046 | G353A046 GD | V |
| 2 | 66 | 77 | 1290 | 0,35 | 8,5 | G353A048 | G353A048 GD | V |
| 2 1/2 | 66 | 92 | 1540 | 0,35 | 8,5 | G353A049 | G353A049 GD | V |
| 3 | 76 | 170 | 2833 | 1,0 | 6,0 | G353-058 | G353-058 GD | V |
| catalogue number | A | B | C | D | E | F | G | H | weight | |
| G353A046 (GD) | 30 | G | 1/8″ | 71 | 130 | 136 | G3/8″ | 90 | 120 | 1,10 |
| G353A048 (GD) | 30 | G | 1/4″ | 95 | 168 | 165 | G3/4″ | 121 | 166 | 2,60 |
| G353A049 (GD) | 30 | G | 1/4″ | 95 | 168 | 165 | G3/4″ | 121 | 166 | 2,30 |
| G353-058 (GD) | 48 | G | 1/4″ | 143 | 240 | 192 | G1/2″ | 121 | 214 | 3,70 |
| G353A063 (GD) | 30 | G | 1/8″ | 87 | 177 | 136 | G3/8″ | 96 | 183 | 1,43 |
