Autel AE1475G225 Pulse Jet Valves

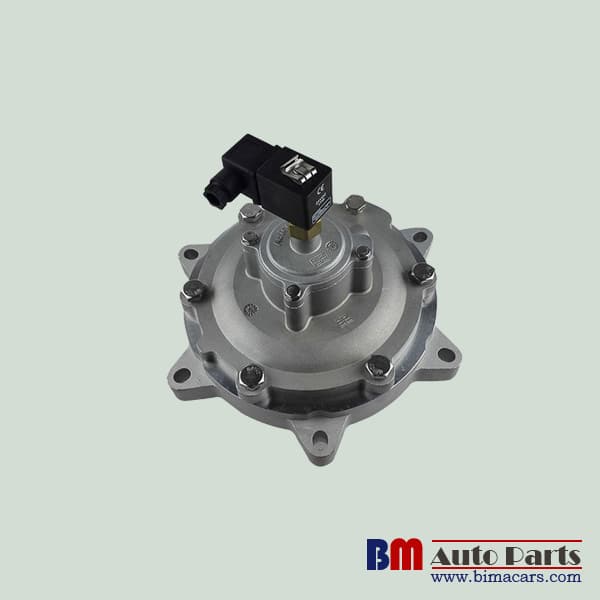

Autel AE1475G225 High Performance Integrated valve G3″ Tank valve

Dust collector applications , in particular for reverse pulse jet filter cleaning including bag filters , ceramic filters , and sintered metal fibre filters.

General Description

In the high efficiency series we can include the range of flat surface valves. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, the activating can be:
Integrated the pilot is placed on the valve and the excitation (electric) is made by a coil.
Remote: the pilot is remote and the excitation is pneumatic. The connection between pilot and valve is made by a simple pneumatic tube.
All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid opening-closing cycles and a working for over a million of shots.

Installation

1.  Autel Pulse Jet Valves AE1475G225 valves are installed through the tank, refer to the appropriate template listed above.

2.  To avoid any potential operational problems it is preferable that the valves are not mounted underneath the tank where condensation may collect. All o-rings should be coated with a silicone based lubricant or similar.

3.  Dresser nut seals where used are a pressure seal only, not a structural component. Do not rely on dresser seals to retain either the tanks or blowtubes. Tanks and blowtubes must be independently restrained.

4.  Tighten dresser nuts to 20Nm (15 ftlbs) max.

5.  Tighten pipe outlets to 20 Nm (15 ftlbs).

6.  Connect to Goyen pilot valve, if remotely actuated.

7. Ensure compressed air supply is dry and free from oil and dirt.

8. Check all cleaning system components are secure before applying pressure.

9. Apply moderate pressure and check for leaks.

10.Fully pressurise system.

11.Test fire and listen for proper actuation and crisp pulse noises.
