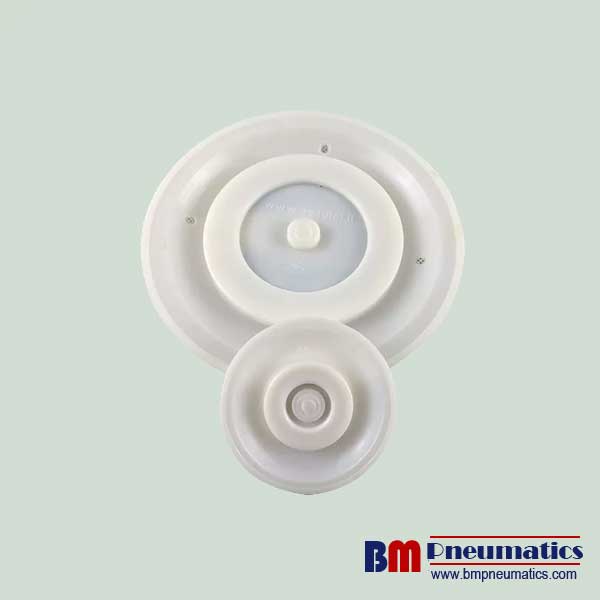

TPE Diaphragm Repair Kit Pump M/D50 M/D60 for Autel AE1450B AE1460B pulse jet valves
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Autel,OEM |
| Certification: | CE,IOS9001 |
| Model Number: | M/D50 M/D60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Carton,and other special packing according to customer’s requirement |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
| Supply Ability: | 2000set/month |
Detailed Product Description
| Features: | Values | Material: | TPE Or PTEF |
|---|---|---|---|
| Color: | White | Pipe Size: | G2″ G2 1/2″ |
| Pressure Range: | 1.5-8bar | Standard Temperature: | -40℃ +100℃ |
| Protect Class: | IP65 | Weight: | 2,6-2,8 Kg |
| High Light: | TPE Diaphragm Repair Kit, PTEF Diaphragm Repair Kit, AE1450B Diaphragm Repair Kit | ||
Description:
| Features | Values |
| In | Pipe 2″ , 2-1/2″ |
| Out | Pipe 2″ , 2-1/2″ |
| Working Pressure | 1,5-8 bar |
| Standard Temperature Range | -40 °C ; +100 °C |
| High Range Temparature | -20 °C ; +200 ° |
| Kv | 62 m^3/h |
| Weight | 2,6-2,8 kg |
| Protection Level | IP65 |
1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1450B AE1460B
2. This repair kit has large air – outlet , so the air can get throgh very smoothly.
3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
4. Autel M/D50 M/D60 membranes has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
5. Its lifespan is about 1 million cycles.
6. Material: TPE or PTEF
7. Color:White
Application:
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
