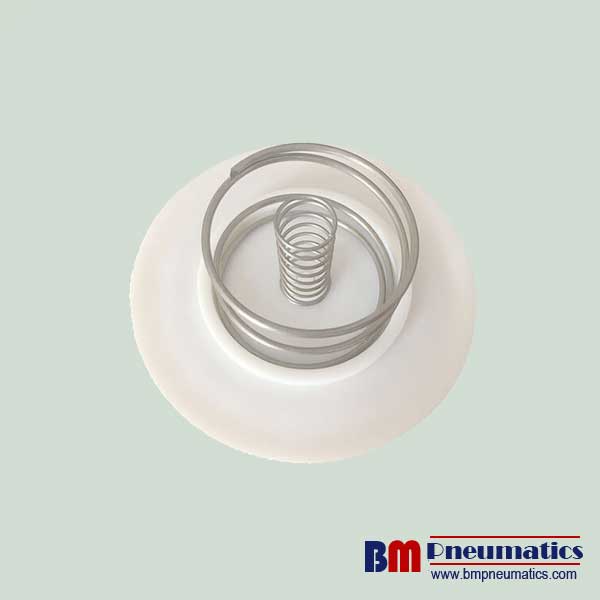

Autel M/D75 pulse valve Diaphragm for AE1475I10 AE1475I12 with SS spring Membrane
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Autel |
| Certification: | CE, ISO9001 |
| Model Number: | M/D75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1-7 work days after payment |
| Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
| Supply Ability: | 2000pcs/ month |
Detailed Product Description
| Range Temperature Standard: | -40℃ +100℃ | Pipe Size: | G3″ |
|---|---|---|---|
| Range Alta Temperature: | -20℃ +200℃ | Protect Class: | IP65 |
| Material: | TPE Or PTEF Fluororubber | Pressure Range: | 1.5-8bar |
| Structure: | Diaphragm | ||
| High Light: | SS spring pulse valve diaphragm, Autel pulse valve diaphragm, M/D75 pulse valve diaphragm | ||
Specification:
1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1475I10 AE1475I12 AE2475I10 AE2475I12 AE1475P AE2475P
2. This repair kit has large air – outlet , so the air can get throgh very smoothly.
3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
4. Autel M/D75 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
5. Its lifespan is about 1 million cycles.
6. Material:Plastic
7. Color:gray
| Carateristiche | |
| Uscita | Pipe 3″ |
| Pressione di Esercizio | 1,5-8 bar |
| Range Temperatura Standard | -40 °C ; +100 °C |
| Range Alta Temperatura | -20 °C ; +200 °C |
| Peso | 11kg |
| Grado di protezione (standard) | IP65 |
Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.
