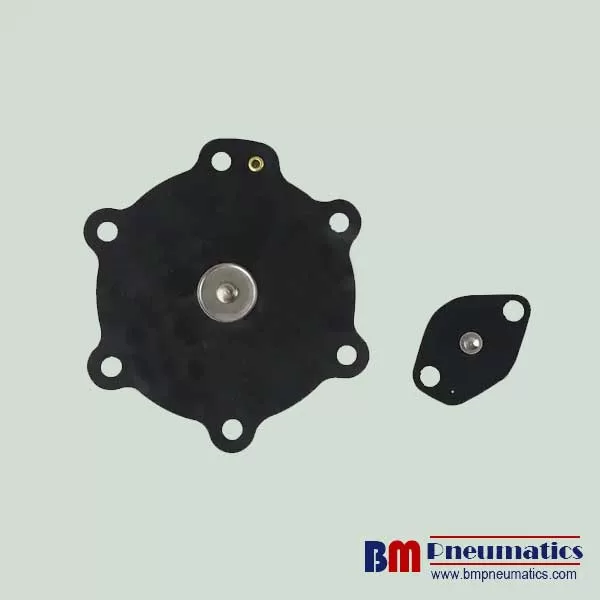

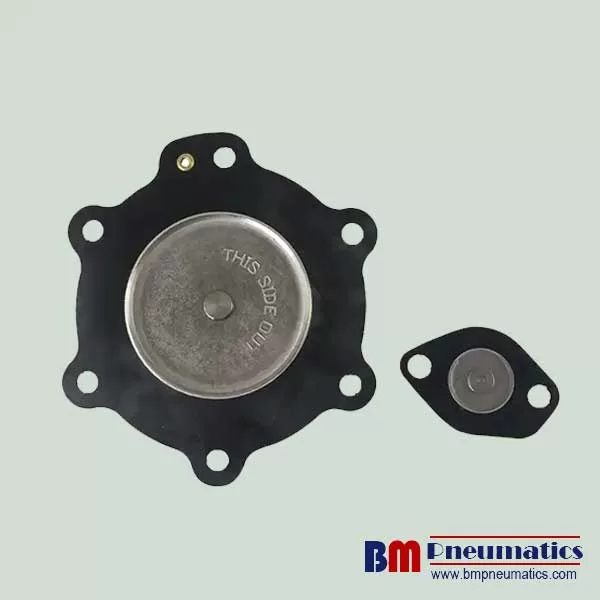

C113826 1-1/2″ G353A046 NBR FKM Pulse Jet Valve Diaphragm Repair Kits
Material: NBR or TPEE or FKM
NBR is for -10~80°C working temperature.
TPEE is for -10~100°C working temperature.
FKM is for -10~200°C working temperature.
NBR is for -10~80°C working temperature.
TPEE is for -10~100°C working temperature.
FKM is for -10~200°C working temperature.
Diaphragm Ordering Code: C113443, C113444, C113825, C113826, C113827, C113684, C113685, C113686, C113928, C113968, K096875,
K200262, K276886, K276887, K276886B, K0850, K0950
Valve Port Size | Pulse Valve Model | Diaphragm Model | Diaphragm Material (FKM is also available) |
3/4” | SCG353A043 | C113444 | TPE (White), NBR (Black) |
1” | SCG353A044 | ||
3/4” | SCG353-052 | ||
1” | SCG353-053 | ||
3/4” | SGG353A043 | ||
1” | SGG353A044 | ||
3/4” | SGG353-052 | ||
1” | SGG353-053 | ||
1 1/2” | SCG353A047 | C113827 | NBR |
SGG353A065 | |||
2” | SCG353A050 | C113685, C113686 | NBR |
2 1/2” | SCG353A051 | ||
3” | SCXE353.060 | C123432, C123433 | NBR |
SCG353D060 | |||
3/4” | G3530A41 | C113443 | NBR |
1” | G353A042 | ||
3/4” | G353-055 | ||
1” | G353-056 | ||
1 1/2” | G353A045 | C113825 | NBR |
G353-066 | |||
1 1/2” | C113826 | NBR | |
G353A063 | |||
2” | G353A048 | C113684 | NBR |
2 1/2” | G353A049 |
