C113928 Pulse Jet Valve NBR Diaphragm For SCXE353.060 3”
Product Description:
This is C113928 diaphragm repair kit for ASCO 3” SCXE353.060, SCR353G060 pulse jet valve. The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
Technical Data of Pulse Valve Diaphragm:
| Suitable Pulse Valve Model | Diaphragm Model | Diaphragm Material |
| G353A041, G353A042 | C113443 | TPE / NBR |
| SCG353A043, SCG353A044 | C113444 | TPE / NBR |
| G353A045 | C113825 | NBR |
| G353A046 | C113826 | NBR |
| SCG353A047, SCG353A065 | C113827 | NBR |
| G353A048, G353A049 | C113684 | NBR |
| SCG353A050, SCG353A051 | C113685, C113686 | NBR |
| SCXE353.060 | C113928 | NBR |
| 8353H038 | 276886 | HYT |
| 8353J039 | 322108 | HYT |

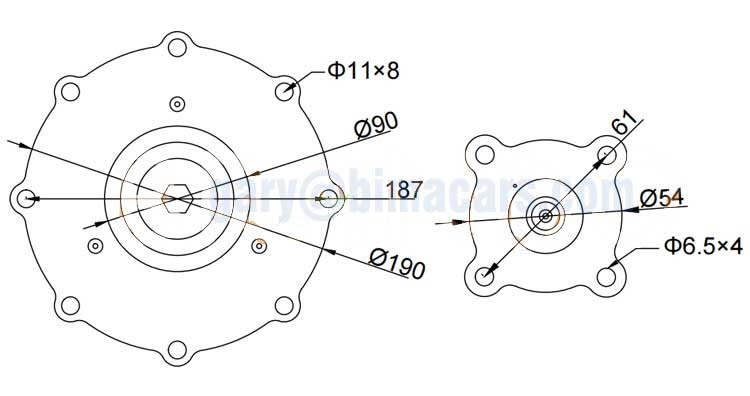

Main Dimension:
