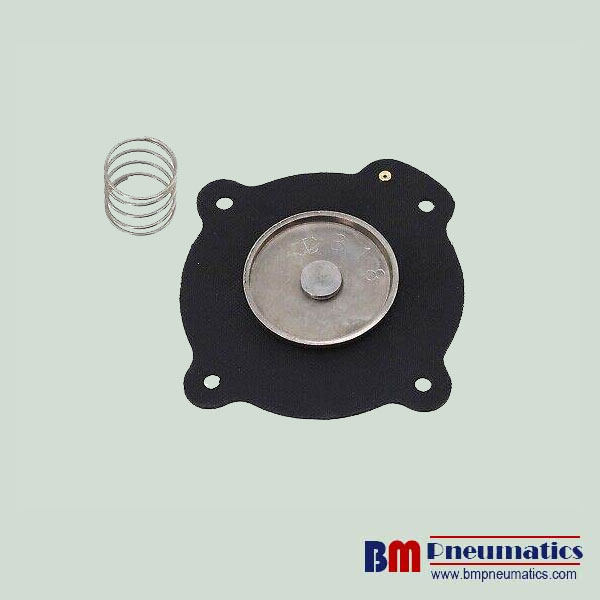

DB18 Diaphragm For Mecair Pulse Valve VNP208 VNP308
Main Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction.
This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force
* No Friction * Wide Pressure Ranges * High Strength
* Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
Ordering Code of Diaphragm For Mecair Pulse Valve:
Ordering code | Fitted valve code | Valve port size | Material |
DB16/G | VNP206, VEM206, VNP306, VEM306 | 3/4” | NBR |
DB18/G | VNP208, VEM208, VNP308, VEM308, VNP408, VEM408 | 1” | NBR |
DB18M | VNP608, VEM608, VNP708, VEM708 | 1”, 1-1/2” | NBR |
DB112/G | VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 | 1-1/2” | NBR |
DB114/C | VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714 | 1-1/2” | NBR |
DB116/C | VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716 | 2” | NBR |
DB120/C | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 | 2-1/2”, 3” | NBR |
Tips: EPDM, FKM all available. | |||

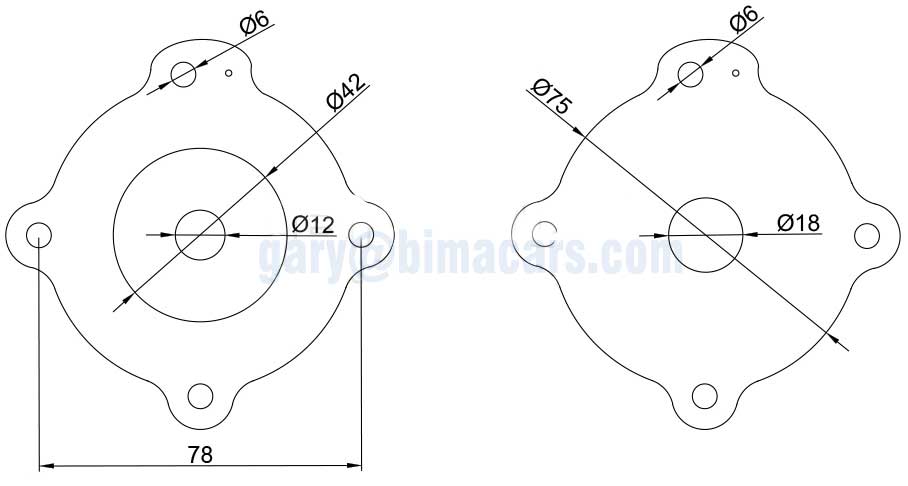

Main Dimension of DB18 Pulse Valve Diaphragm:
