| Material: | TPE | Color: | White |
|---|---|---|---|
| Pipe Size: | G1INCH | Pressure Range: | 1.5-8bar |
| Standard Temperature: | -40℃ +100℃ | Connector: | Pg9 IP65 |
| High Light: | M/D25 Diaphragm Repair Kit, G1 Diaphragm Repair Kit, AE2825R Diaphragm Repair Kit | ||

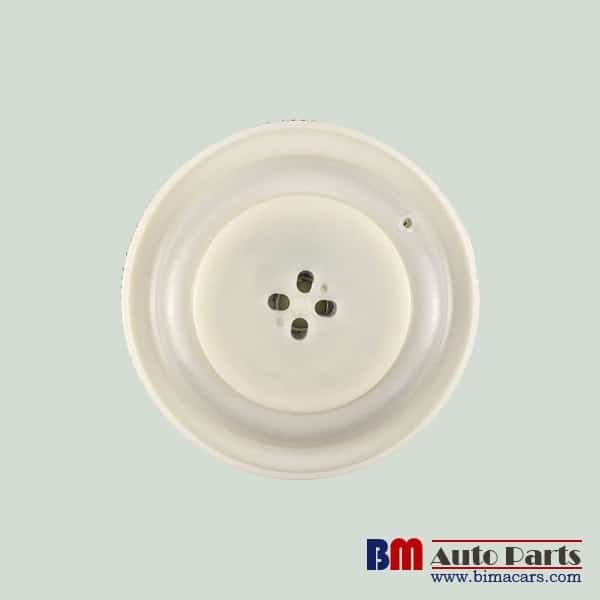

M/D25 TPE Diaphragm Kit for Autel AE1825B,AE2825R pulse jet valve G1INCH
Description:
1. The diaphragm repair kits is for Italy Autel pulse jet valves AE1825B,AE2825R
2. This repair kit has large air – outlet , so the air can get throgh very smoothly.
3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
4. Autel M/D25 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
5. Its lifespan is about 1 million cycles.
6. Material: Plastic
7. Color:White
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives

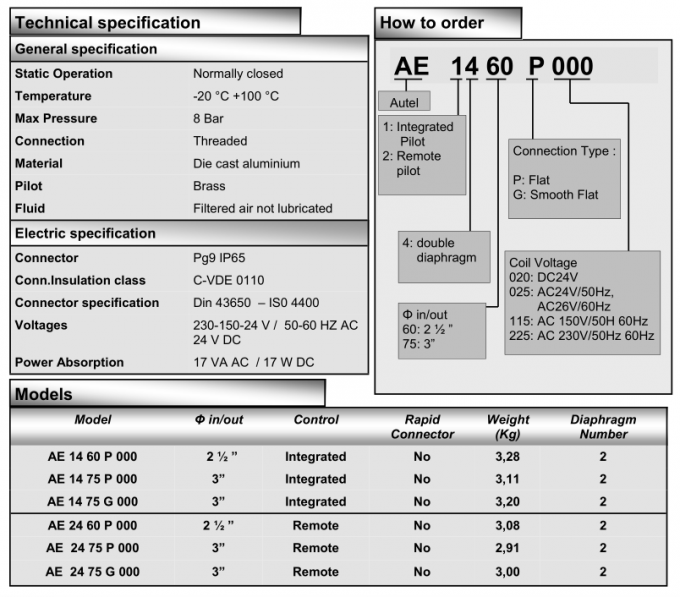

General Description
In the high efficiency series we can include the range of flat surface valves. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, the activating can be:
Integrated the pilot is placed on the valve and the excitation (electric) is made by a coil.
Remote: the pilot is remote and the excitation is pneumatic. The connection between pilot and valve is made by a simple pneumatic tube.
All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid opening-closing cycles and a working for
over a million of shots.
