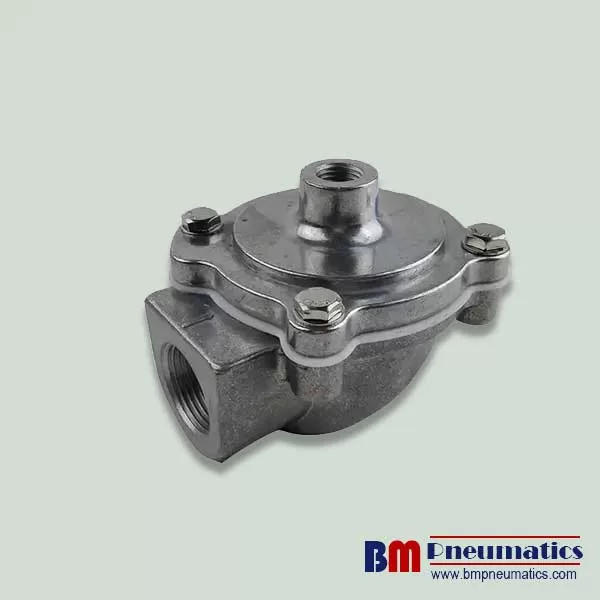

G353A041 Threaded Remote Pilot 3/4” Solenoid Pulse Jet Valve Diaphragm Valve C113444 C113443
Product Description
353 Series Pulse Jet Valve:
1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051
2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045,G353A048,G353A049
3. Immersion Pulse Jet Valve: SCXE353.060
Model code | G353A041 |
Material | Aluminum |
Port size | 3/4 inch |
Weight | 0.45 kg |
Voltage | 220VAC;110VAC 24VDC; 48VDC |
Used | Dust collector industry machinery |
Port Size | Remote Pilot Connection | Office Size | Operating Pressure Differential (Bar) | Model Number | Diaphragm Material | |
G | φB | (mm) | Min. | Max. | Aluminium | NBR/Viton |
3/4” | 1/8” | 24 | 0.35 | 8.5 | G353A041 | |
1” | 1/8” | 27 | 0.35 | 8.5 | G353A042 | |
1 1/2” | 1/8” | 52 | 0.35 | 8.5 | G353A045 | |
Customization options
Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 200 pieces)
Graphic customization (Min. order: 200 pieces)
