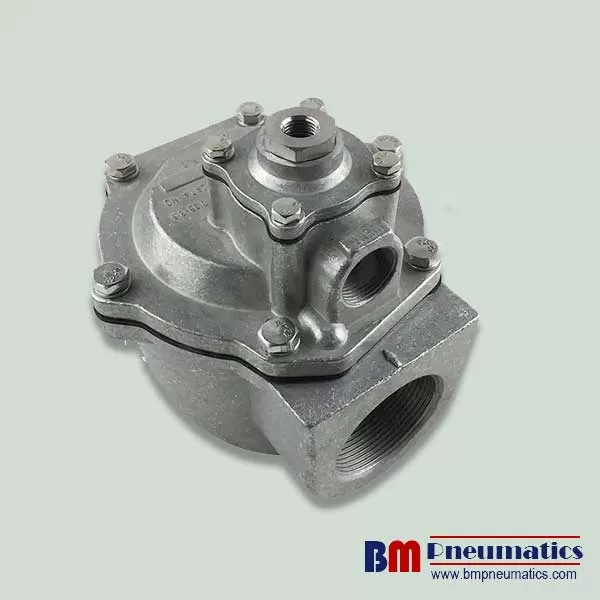

G353A048 2” Diaphragm Pulse Jet Valve


G353A048 2” G353A049 2-1/2″ C113684 Remote Pilot Diaphragm Pulse Jet Valve Dust Collector Bag Filter Baghouse Pulse Valve

353 Series Pulse Jet Valve:

1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051

2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045

3. Immersion Pulse Jet Valve: SCXE353.060



According to the valve structure:
* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type
Model code
G353A048 G353A049
Material
Aluminum
Port size
2“ 2-1/2”
Weight
2.6 kg
Used
Dust collector industry machinery
Port Size
Remote Pilot Connection
Orifice Size
(mm)
Kv
Operating Pressure Differential (bar)
Model Number
(m3/h)
(l/min)
threaded pipe connection
G3/4”
G1/8”
24
14
233
0.35 to 8.5
G353A041
G1”
G1/8”
27
17
283
0.35 to 8.5
G353A042
G1 1/2”
G1/4”
52
46
768
0.35 to 8.5
G353A045
(Single Stage)
G1 1/2”
G1/8”
50
46
768
0.35 to 8.5
G353A046
(Dual Stage)
G2”
G1/4”
66
77
1290
0.35 to 8.5
G353A048
G2 1/2”
G1/4”
66
92
1540
0.35 to 8.5
G353A049

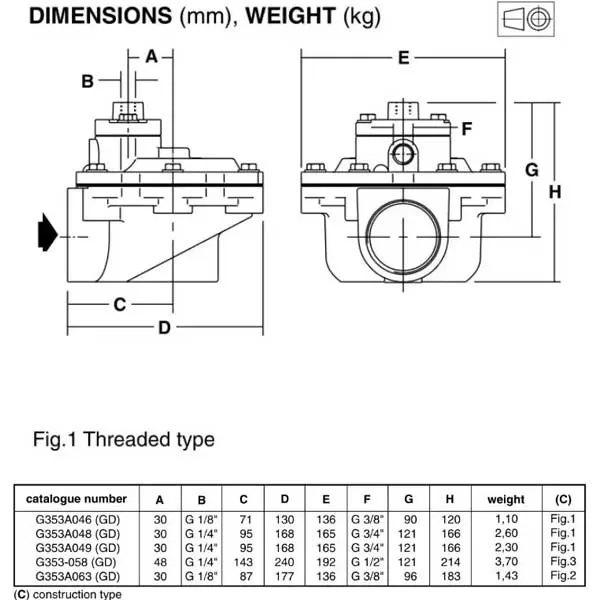

G353A048-DATASHEET

Customization options

Customized logo (Min. order: 100 pieces)
Customized packaging (Min. order: 200 pieces)
Graphic customization (Min. order: 200 pieces)
