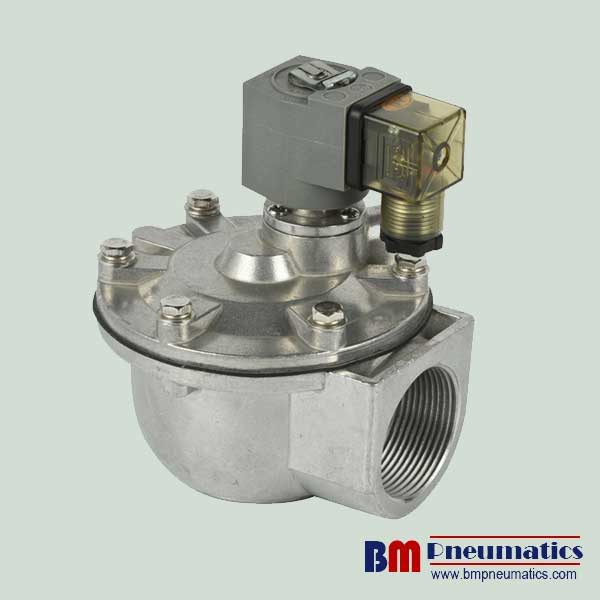

1.5” CA35T Goyen Type T Series Pulse Valve
Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
* Threaded Type
* Manifold Flat Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type
Technical Data of T Series Dust Collector Pulse Valve:
Model No | CA15T | CA20T | CA25T | CA35T | CA45T | CA50T | CA62T | CA76T |
Office Size (mm) | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
Port Size (Inch) | 1/2” | 3/4” | 1” | 1 1/2” | 1 1/2” | 2” | 2 1/2” | 3” |
Diaphragm Number | 1 | 2 | ||||||
Working pressure | 0.35 to 0.85 MPa (5 to 125 PSI) | |||||||
Voltage | 24VDC, 24VAC, 110VAC, 220VAC | |||||||
Diaphragm Material | NBR, FKM, EPDM | |||||||
Body Material | Aluminum Alloy | |||||||
Valve Structure | Right Angle (Outlet is at 90° to Inlet), Threaded Port | |||||||

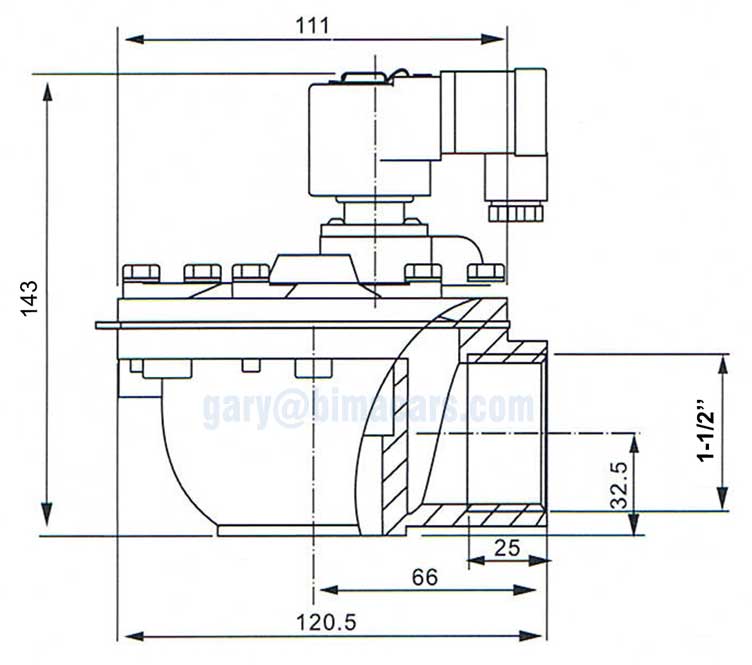

Dimension of CA35T Dust Collector Diaphragm Valve:
