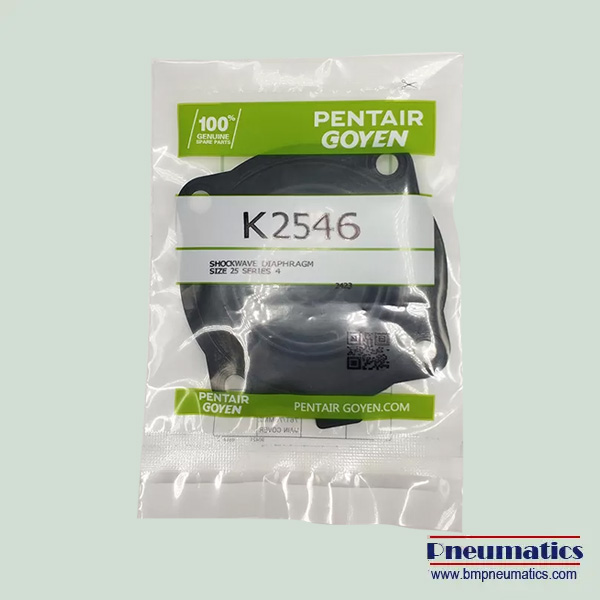

Goyen Diaphragm Repair Kit K2546 for Goyen CAC25T4 RCAC25FS4 CAC25DD4 AG8113901
| Place of Origin: | CHINA |
| Brand Name: | Goyen |
| Certification: | CE, ISO9001 |
| Model Number: | K2546 |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer’s requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Model:: | K2546 | Body Material: | Aluminium Alloy |
|---|---|---|---|
| Seal Material: | Shockwave | Protection Class: | IP65 With Cable Plug |
| High Light: | aro diaphragm pump repair kit, diaphragm pump repair kit, K2546 Diaphragm Repair Kit | ||
DESCRIPTION
High-performance diaphragm valve with threaded ports. Equipped with ‘Shockwave’ springless diaphragm. The 4 series valves are available as remote pilot valves and may be converted to an integral pilot using either the RCA3DM or RCA3PV screw-in pilots. Outlet is at 90° to inlet.
SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
CONSTRUCTION
Body: Aluminium (diecast)
Screws: 304 Stainless steel
Diaphragm: Proprietary highperformance engineering thermoplastic Elastomer or fluororubber
The installment introduction:
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.
OPERATION
Recommended on-time range: 50 to 500 ms
Recommended time between
pulses: 1 minute or greater
APPROVALS
The RCAC25T4 meets the requirements of the European Low Voltage Directive 2006/95/EC, when fitted with the RCA3PV pilot.
Please Note: We recommend using Schedule 40 pipe. Thickness OD is as shown below.
Product Details:
| Place of Origin: | AU |
| Brand Name: | Goyen |
| Certification: | CE |
| Model Number: | K2501 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer’s requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
Detailed Product Description
| Material: | NBR | Color: | Black |
|---|---|---|---|
| Fit Valve: | R/CA25T R/CA 25DD R/CA25MM | Standard Temperature: | -40℃ +100℃ |
| Port Size: | DN25 | Lifespan: | 1 Million Cycles |
| High Light: | air pump diaphragm kits, diaphragm pump repair kit, Goyen Nitrile Diaphragm Repair Kits | ||
Ordering Code: K2501 (Nitrile), K2503 (fluororubber)
Fit for: CA-25T,RCA25T,CA-25DD,RCA25DD,CA-25MM,RCA-25MM
Description:
1. The diaphragm repair kits is for Goyen pulse jet valves CA-25T,RCA25T,CA-25DD,RCA25DD,CA-25MM,RCA-25MM
2. Material: NBR/fluororubber
3. This repair kit has large air – outlet , so the air can get throgh very smoothly.
4. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
5. Goyen K2501 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
6. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
7. Its lifespan is about 1 million cycles.
Competitive Advantage:
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company’s sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
