Goyen FS Series CA45FS Flanged Pulse Valve


CA45FS Goyen Type FS Series Flanged Pulse Valve

Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Different pulse jet valve structure:

* Threaded Type
* Manifold Flat Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type

Technical Data of FS Series Dust Collector Pulse Valve:

Model Number
CAC25FS
CA45FS
Port Size
1”
1.5”
Valve Structure
Right Angle, Flanged Port
Working Pressure Range
0.35 to 0.85 Mpa
Coil Voltage
24VAC, 110VAC, 220VAC, 24VDC
Valve Body Material
Aluminium Alloy
Diaphragm Material
NBR, FKM, EPDM

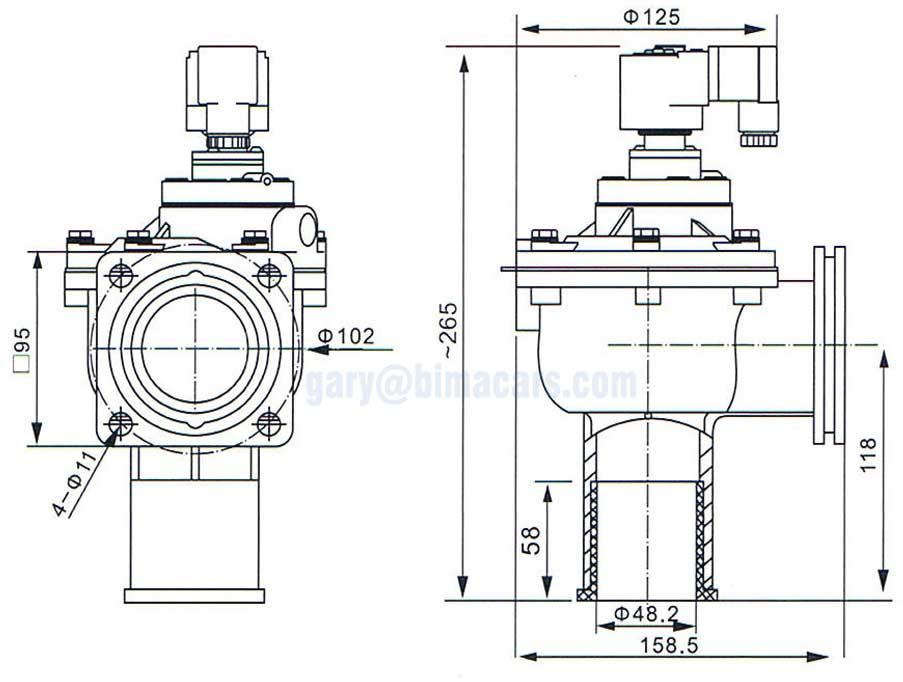

CA45FS-Goyen-Valve
