K0580 K0584 Armature Plunger Pilot Solenoid Valves For Goyen RCA5D2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GOYEN |
| Certification: | CE |
| Model Number: | K0580 K0584 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Carton,and other special packing according to customer’s requirement |
| Delivery Time: | 1-10 work days |
| Payment Terms: | T/T, Western Union,Paypal,Credit card |
| Supply Ability: | 5000sets/month |
Detailed Product Description
| Product Name: | K0580 K0584 | Material: | Stainless Steel |
|---|---|---|---|
| Customized: | Yes | Working Temperature: | -20℃ To 80℃ |
| Includes: | O-ring, Armature, Spring, Ferrule | Lifespan: | 1 Million Cycles |
| High Light: | air pulse valve, pulse jet valve | ||

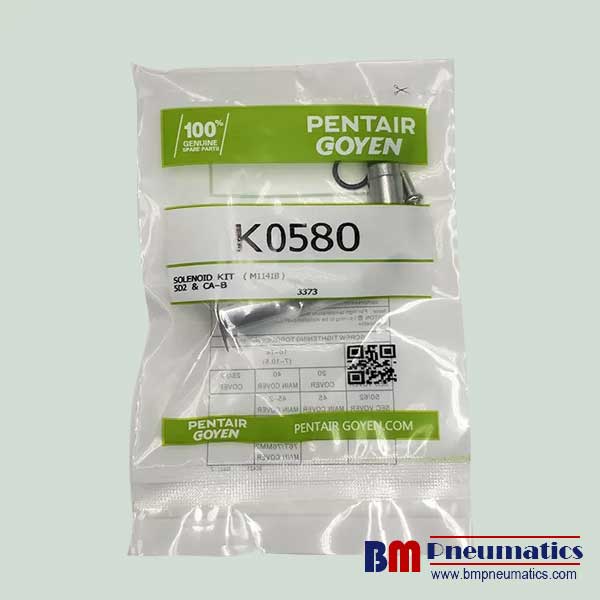

Goyen Pilot repair kit K0580 K0584 includes O-ring, armature assembly, armature spring, ferrule.
The product is developed to be used in ambients with temperature range from –10°C to +80°C
The K0580 plunger is normally equipped with NBR rubber seals. Other K0580 meterial is fluororubber.
The armature assembly is designed for more than 50×106 cycles.
Specifications:
Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The plunger is normally equipped with NBR rubber seals. Other materials like FKM are available upon request. The armature assembly is designed for more than 50×106 cycles.
The guide tube is made with brass (stainless steel is possible upon special agreement).
1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5 . Integral pilot operated valves satisfy all relevant EC directives
General Data:
Ambient temperature ············································· – 10 °C to + 80 °C
Quality of medium according to ISO 8573-1 ·········· compressed air class 4, 3, 4
Mounting position ·················································· any ( preferably plunger in vertical direction )
