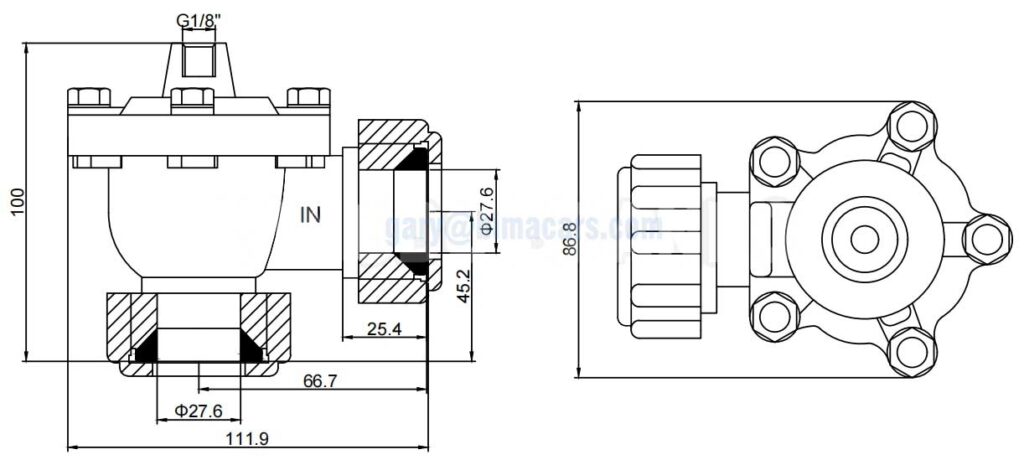

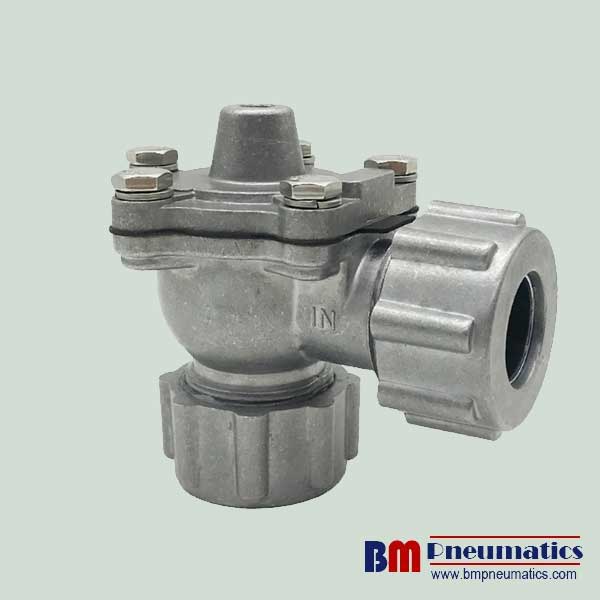

RCA20DD Goyen Type Remote Pilot Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Threaded Type
2. Straight Through Type
3. Dresser Nut Type
4. Flanged Type
5. Manifold Flat Mount Type
Technical Data:
Integral Pilot Model No | CA20DD | CA25DD | CA45DD |
Remote Pilot Model No | RCA20DD | RCA25DD | RCA45DD |
Port Size | 3/4” | 1” | 1 1/2” |
Pilot Size | 1/8”, 1/4” | ||
Pipe Connection | Dresser Nut | ||
Diaphragm Number | 1 | 2 | |
Working Pressure | 5 to 125 psi | ||
Diaphragm Material | NBR (standard) FKM (optional) | ||
Body Material | Aluminum (diecast) | ||
Voltage | 24VDC, 24VAC, 110VAC, 220VAC | ||
