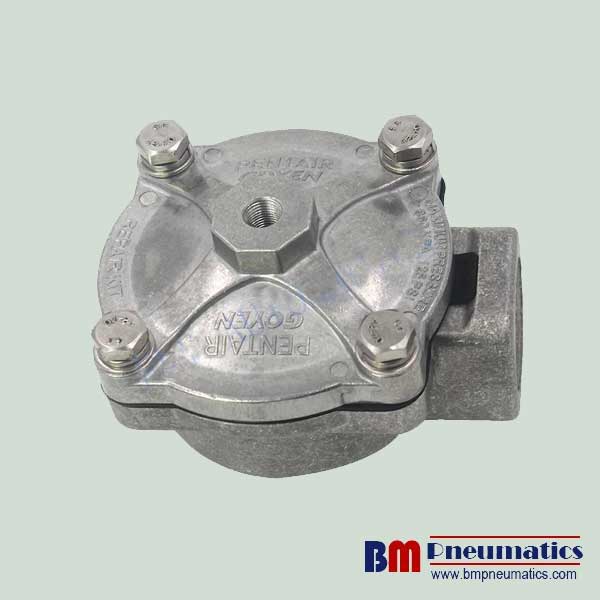

RCAC25T4 Goyen Type Remote Pilot Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
1. Threaded Type
2. Dresser Nut Type
3. Manifold Mount Type
4. Flanged Type
5. Straight Through Type
Technical Data:
Model No | RCA15T | RCA20T | RCA25T | RCA35T | RC45T | RCA50T | RCA62T | RCA76T |
Orifice Size (mm) | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
Port Size (inch) | 1/2” | 3/4” | 1” | 1 1/2” | 1 1/2” | 2” | 2 1/2” | 3” |
Diaphragm Number | 1 | 2 | ||||||
Pilot Size | 1/8”, 1/4” | |||||||
Working Pressure | 0.35 to 0.85 MPa | |||||||
Diaphragm Material | TPE (Shockwave), NBR, FKM | |||||||
Body Material | Aluminum (diecast) | |||||||
Valve Structure | Right Angle (Outlet is at 90° to Inlet), Threaded Port | |||||||

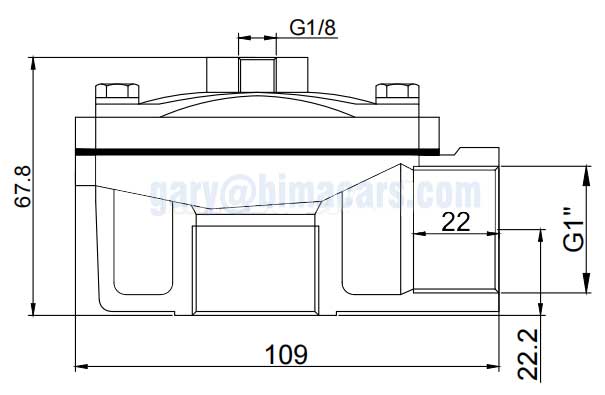

Main Dimension:
