The Goyen Replacement K4000 repair kit fits the MM Series, F series, T Series, and DD Series.
The K4000 fits 1 1/2″ port size RCA/CA 40 valves and comes with a circular diaphragm, nylon seat, small circular diaphragm and stainless steel springs.

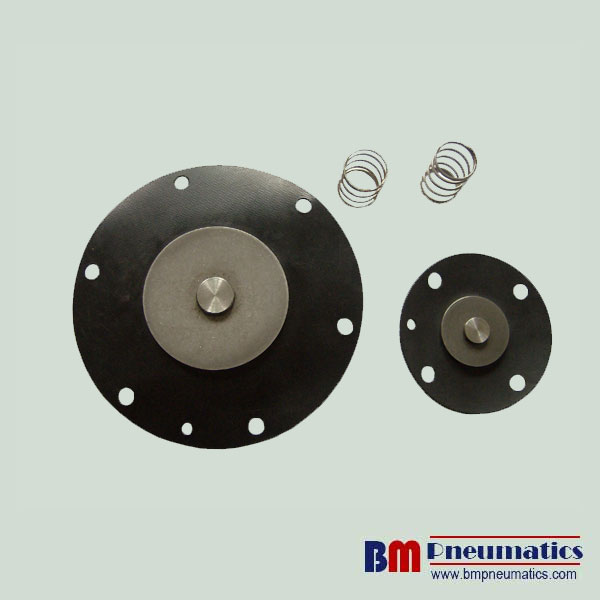

K4000 K4007 RCA40 Goyen Type Pulse Valve Diaphragm
Main Features of Valve Diaphragm:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change
fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction.
This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or
require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force
* No Friction * Wide Pressure Ranges * High Strength
* Low Cost * Simple Design * Versatility
5. EPDM, FKM all available.
Ordering Code of Diaphragm For Goyen Pulse Valve:
Pulse Valve Model | NBR Diaphragm Model | FKM Diaphragm Model | Low Temprature Diaphragm Model | |
RCA10-6T | K1001 | K1002 | / | |
CA20T | RCA20T | K2000 (M1204B) K2002 (M764) | K2007 | / |
CA20DD | RCA20DD | |||
CA25T | RCA25T | K2501 (M1183B) K2502 (M736) | K2503 (M1887) | K2504 |
CA25DD | RCA25DD | |||
CAC25FS | RCA25FS | |||
CA25MM | RCA25MM | |||
CA32T | RCA32T | K2500 (M1183) K2522 (M736) | K2503 (M1887) | / |
CA35T | RCA35T | K3500 (M1581) | K3501 | K3502 (M1591) |
CA40T | RCA40T | K4000 (M1182) | K4007 (M1156) | / |
CA40MM | RCA40MM | |||
CA45T | RCA45T | K4502 (M2162) K4504 (M2187) | K4503 | K4522 |
CA45DD | RCA45DD | |||
CA45FS | RCA45FS | |||
CA40MR | RCA40MR | |||
CA50T | RCA50T | K5004 (M1638A) K5005 (M1639A) | K5000 | / |
CA62T | RCA62T | |||
CA76T | RCA76T | K7600 | K7601 | / |
CA76MM | RCA76MM | |||
CA76MR | RCA76MR | |||
CA102MM | RCA102MM | K10200 | K10201 | / |
CA62MR | RCA62MR | K7604 | K7602 | / |
RCA20M | K2003 (M1174B) | / | / | |
RCAC20T3, ST3, DD3, FS3 | K2016 | K2017 | / | |
RCAC25T3, DD3, FS3 | K2529 | K2530 | ||
RCAC25FH3 | K2531 | / | / | |
Pulse Valve Model | Shockwave Diaphragm Model | FKM Diaphragm Model | / | |
RCAC20T4, ST4, DD4, FS4 | K2034 | K2033 | / | |
RCAC25T4, ST4, DD4, FS4 | K2546 | K2551 | / | |
RCAC25FH3 | K2545 | / | / | |
RCAC25T3, DD3, FS3 | K2549 | / | / | |

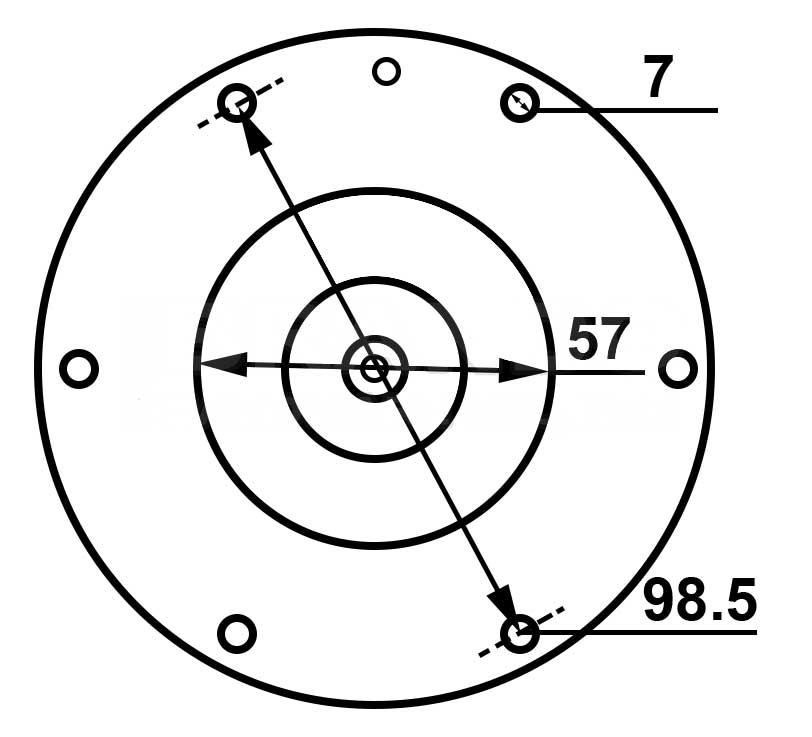

Main Dimension of K4000, K4007 Pulse Valve Diaphragm:
