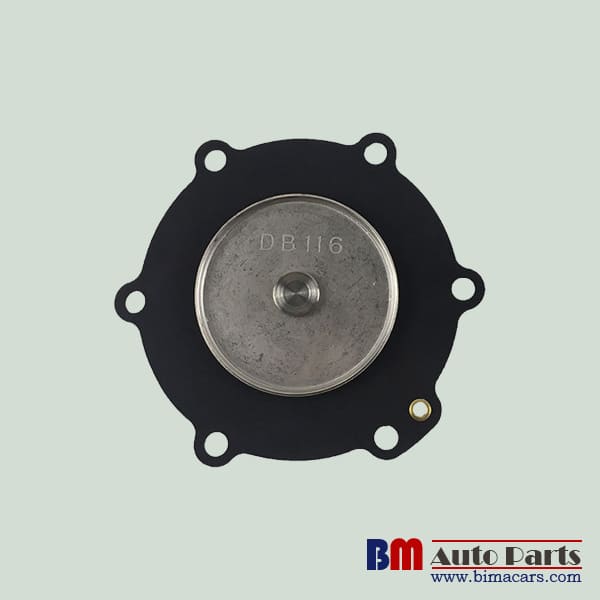

Mecair DB116 Nitrile Diaphragm Repair Kit


Detailed Product Description
Model Code:DB116Pulse Valve:VNP/VEM216 VNP/VEM316 VNP/VEM416 VNP/VEM616 VNP/VEM716
Material:NBR, VitonMake:PENTAIR MECAIR
Size:G2″
High Light:Nitrile Diaphragm Repair Kit, Mecair DB116 Diaphragm Repair Kit, G2 Diaphragm Repair Kit

Mecair DB116 Nitrile Diaphragm Repair Kits VNP216 rubber pump diaphragm valve

Ordering Code:  DB116
The diaphragm is fit for the Mecair pusle valves: VNP216 , VEM216 , VNP316 ,  VEM316,  VNP416,  VEM416, VNP616, VEM616, VNP616, VEM716
Metial: Nitrile or Common rubber
Use:For the Pulse Jet Valves

Structure and Performance:
Coating both sides of a single layer or multiple layers , and the fabric does not clip with rubber . Method according to their shape of the membrane pressure method . According to different requirements can be manufactured of plastic material, different fabric diaphragm. Performance of nitrile rubber diaphragm with a blend of rubber and polysulfide rubber material , sandwiched canvas disc diaphragm ( often called the diaphragm ) used some of the silicone rubber, fluoro rubber, epichlorohydrin rubber material properties and the recent development see description below the diaphragm performance .
Diaphragm itself operating temperature range and pressure range depends on the types of plastic , fabric and structure. The diaphragm can be operated at -50 to 100 ° C , 0.4 ~ 0.8MPa conditions ; fluorine rubber and silicone rubber diaphragm 232 can work in -80 degrees Celsius . Epichlorohydrin rubber diaphragm can work under pressure 0.4 ~ 0.8MPa , air tightness, anti-aging , longevity and engine overhaul life equal.
Produce Structure

Tract: Valve’s crust and close over is made of aluminum alloy that’s formed by pressing die, good appearance, heavy intensity, no gas leak. Structure of connection of two back pressing air of interval channel of valve is reasonable. this design make “ubmerged-type” true due to opening and closing face of valve locate in air pocket. Air from pocket can come in blowing cannulation straightly. It accord request with low air pressure and big quantity of blowing.
Electromagnetically operated valve: Control pulse valve by remoting. With trube base coil and DIN electrical outlet, conwiniet inner setting or outer setting, waterproof and dustproof for protect. Upto JB/t5916-91 standard.
Membrane patch: Adopt dish-type, and big moving. Valve can be opened in 0.08-0.1 second. You can choice synthetic rubber membrane patch made of import materials in frigid climate. Membrane patch can be longest used when working temperature is from -40℃ to -55℃.
1, Technical Paremeter
1Acclimation:
1) Temperature: -10~+55℃;
2) Working Medium: clean air
2Humidity: less than 85%
3Blowing Supplier Pressure: it’s better 0.2~0.3Mpa,or0.3~0.6Mpa.
4Blowing Tolerance: when blowing supplier pressure is 0.25Mpa and blowing time is 0.1 second.

Features
The 200 series is a range of diaphragm valve suitable for dust collector applications, in particular for reverse pulse jet filter cleaning of filter bags, cartridges, envelope filter, ceramic filters and sintered metal fibre filters, The 200 series valve has the inlet port at 90° to the outlet port. The 200 series range comprises 7 models, from 3/4″ to 3″, all with threaded femal gas connections. The 1 1/2″ model is available in the single ans double diaphragm versions, while the 2″, 2 1/2″ and 3″ are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installations. The valves are constructed in die-cast aluminium and have an anodised pretection treatment which protect them from corrosive and environmental agents, Bolts and screws are in stainless steel. The 200 series is available in the following versions:

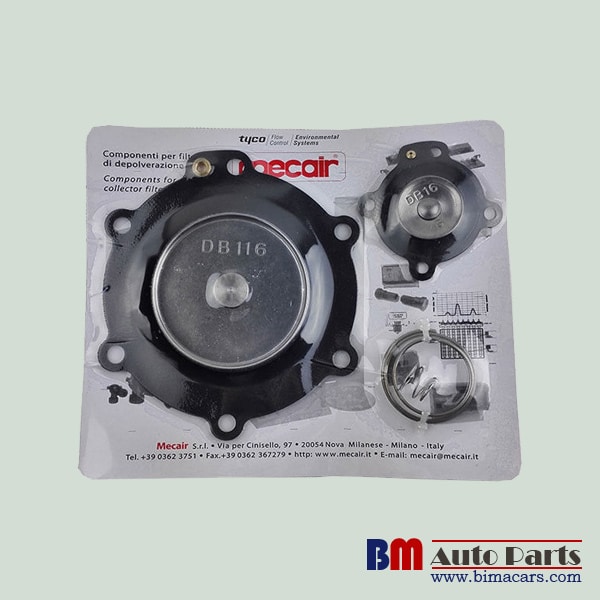

G2" Mecair DB116 Nitrile Diaphragm Repair Kit 3VNP, with integrated pilot
G2" Mecair DB116 Nitrile Diaphragm Repair Kit 3VEM, with remote pneumatic connection
