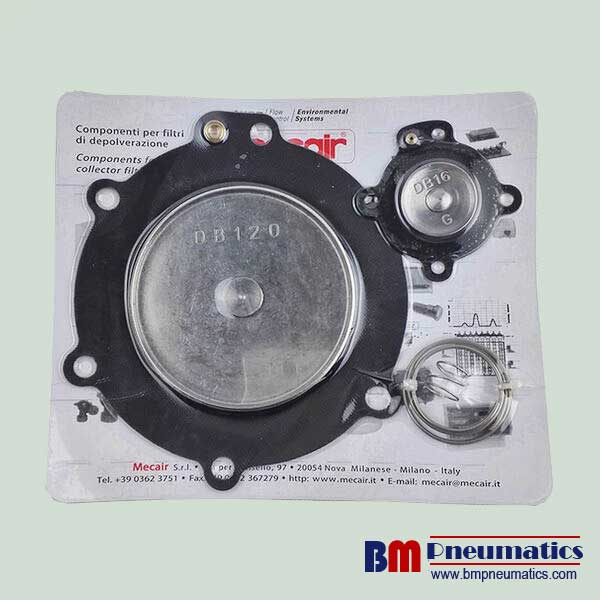

Mecair DB120 G3″ Diaphragm Repair Kits pulse solenoid valve With SS spring
Product Details:
| Place of Origin: | China |
| Brand Name: | PENTAIR MECAIR |
| Certification: | CE |
| Model Number: | DB120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer’s requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
| Supply Ability: | 2000 pcs |
Detailed Product Description
| Model Code: | DB120 | Pusle Valve: | VNP/VEM220 VNP/VEM320 VNP/VEM420 VNP/VEM620 VNP/VEM720 |
|---|---|---|---|
| Port Szie: | 3″ | Material: | NBR, Fluororubber |
| Color: | Black | Make: | PENTAIR MECAIR |
| High Light: | G3″ Diaphragm Repair Kit, DB120 Diaphragm Repair Kit, Mecair Diaphragm Repair Kit | ||
Ordering Code: DB120
Material: Nitrile/Buna
Nitrile is for -10~80°C working temperature.
FKM is for -10~200°C working temperature.
The diaphragm is fit for the Mecair pusle valves: VNP220 , VEM220 , VNP320 , VEM320, VNP420, VEM420, VNP620, VEM620, VNP620, VEM720
The 200 Series is available in the following versions:
• VNP,with integrated solenoid pilot
• VEM,with remote pneumatic connection.
We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
Reminder:
* Diaphragm and pilot inspection should be conducted once a year.
* Ensure that components are completely isolated from pressure and power before any maintenance activities are performed on the system. Do not reapply pressure and power until the valve is fully assembled.
Pulse jet valve
1. Used outside of bag-type duster sack-duster’s blowing and cleaning ash.
2. Adopte this kind of structure that submerge in the air porket..
3. Compare to other structure, reduce resistance in interval channel and pressure of blowing supplier.
4. So it adapt siuation of low pressure, reduce energy consumption and prolong membrance patch using.
Metial: Nitrile or Common rubber
Use:For the Pulse Jet Valves
Structure and Performance:
Technical Paremeter
1Acclimation:
1) Temperature: -10~+55℃;
2) Working Medium: clean air
2Humidity: less than 85%
3Blowing Supplier Pressure: it’s better 0.2~0.3Mpa,or0.3~0.6Mpa.
4Blowing Tolerance: when blowing supplier pressure is 0.25Mpa and blowing time is 0.1 second.
