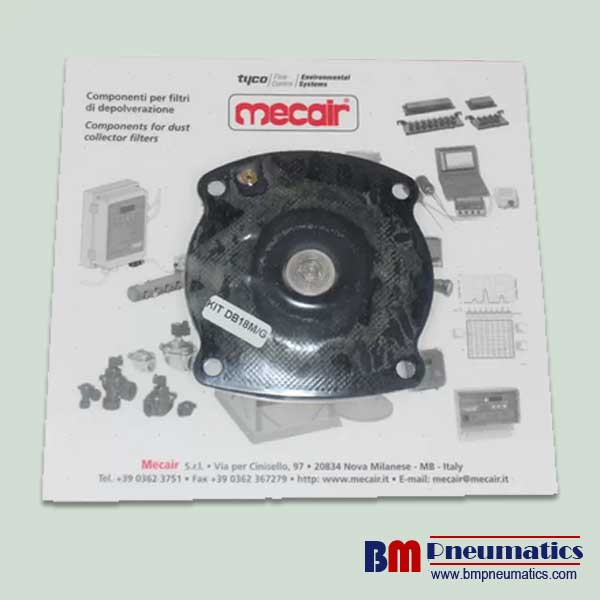

Mecair DB18M Pneumatic Pulse Solenoid Valve Diaphragm repair kit
Product Details:
| Place of Origin: | China |
| Brand Name: | Mecair or OEM |
| Certification: | CE |
| Model Number: | DB18M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer’s requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Model Code: | DB18M | Brand: | Mecair |
|---|---|---|---|
| Material: | NBR/fluororubber | Color: | Black |
| High Light: | air pump diaphragm kits, diaphragm pump repair kit | ||
Features
Ordering Code: DB18M
The diaphragm is fit for the Mecair pusle valves: VNP208 , VNP224 , VEM208 , VEM224 , VNP308 , VNP324 , VEM308 , VEM324,VNP408, VEM408, VNP608, VEM608
Standard
NBR:-20℃/ +120℃ Optional
Vition:-30℃/+200℃
Nitrile:-40℃/+120℃
Pressure range: From 0.5 to 7.5Bar
Specification
| DB18M | |
| Material | NBR/fluororubber |
| Kv/Cv | 17.55/20.48 |
| Blowing area(m²) | 8~10 |
| Air inlet/Outlet size | Φ34 Φ34 |
| Weight(kg) | 0.1 |
| Color | Black |
The installment introduction:
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.
