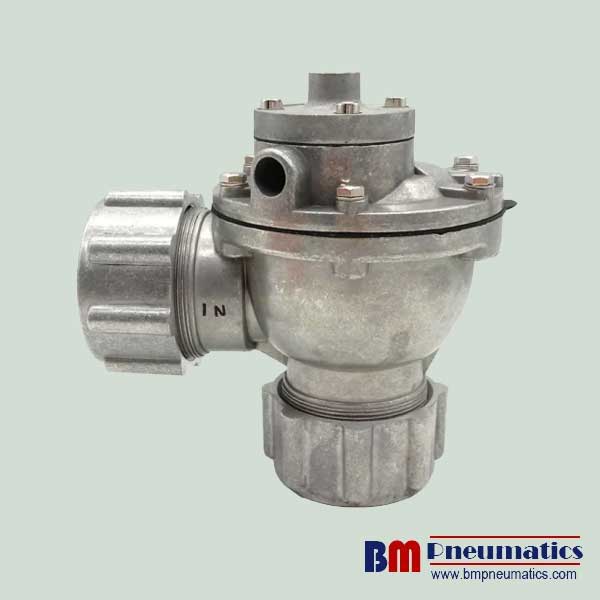

RCA45DD Goyen Type Remote Pilot Pulse Jet Valve
Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the Pulse Controller. Pulse Jet Valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. Pulse jet valves are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different pulse jet valve structure:
* Threaded Type
* Manifold Flat Mount Type
* Dresser Nut Type
* Straight Through Type
* Flanged Type

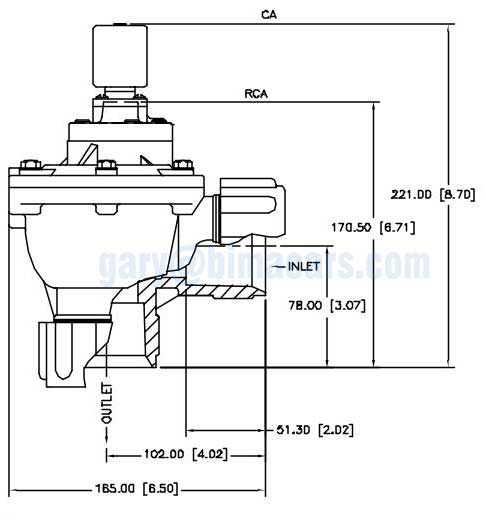

Technical Data of DD Series Dust Collector Pulse Valve:
Model No | RCA20DD | RCA25DD | RCA45DD |
Port Size | 3/4” | 1” | 1 1/2” |
Pipe Connection | Dresser Nut | ||
Diaphragm Number | 1 | 1 | 2 |
Working Pressure Range | 0.35 to 0.85 MPa | ||
Fluids | Air | ||
Diaphragm Material | NBR, FKM | ||
Valve Body Material | Aluminum Alloy | ||
