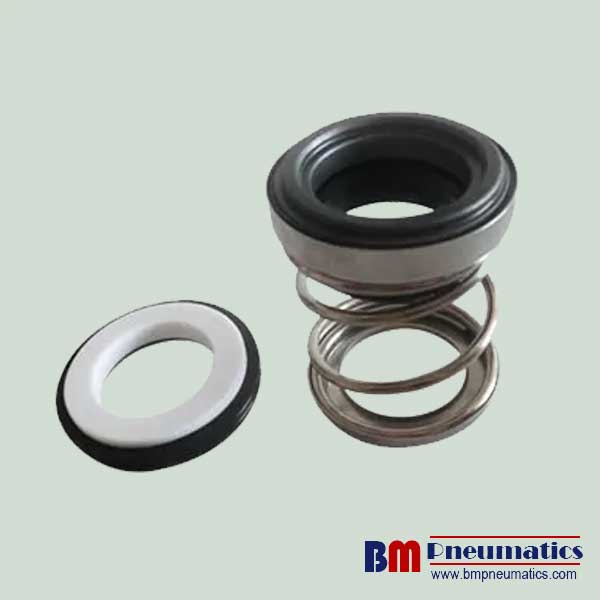

Graphite Silicon Carbide 108-20 Sewage Pump Repair Kit Mechanical Seal
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | FLY |
| Certification: | CE |
| Model Number: | 108-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer’s requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 10000 pcs |
Detailed Product Description
| Model: | 108-20 | Material: | Graphite Silicon Carbide |
|---|---|---|---|
| Original: | China | MOQ: | 10 PCS |
| High Light: | air pump diaphragm kits, aro diaphragm pump repair kit | ||
Graphite Silicon Carbide 108-20 Sewage Pump Repair Kit Mechanical Seal
spring mechanical seal,safematic mechanical seal
Model: 108-20
Material: rubber/stainless steel/SIC/Carbide Tungsten
Size: Customized, standard or nonstandard.
Delivery time: 2 weeks.
Product Description
Mechanical seal:WM 108-20
| 1 | Temperature | -20℃~110℃ |
| 4 | Stationary Ring | Ceramic/SiC/TC |
| 5 | Rotary Ring | Carbon/SiC/TC |
| 6 | Secondary Seal | NBR/EPDM/fluororubber |
| 7 | Sping&Other Parts | SUS304/SUS316L
|
| 8 | Retainer | SUS304/SUS316L |
| 9 | Spring Holder | SUS304/SUS316L |
Structural Feature:
Double seal face
Unbalanced type
Dependent on direction of rotation
Range of application
Allow combinations of varieties material and end face, widely used for submersible pump, water pump etc.
Operation parameters:
Type: 12 ~ 55 mm
Temperature: – 20 ℃ ~ + 150 ℃
Pressure: ≤0.8MPa
Linear speed: ≤10m/s
Axial movement: ±0.2mm
Medium: applied to water, oil, organic solvent and other corrosive medium.
